Description

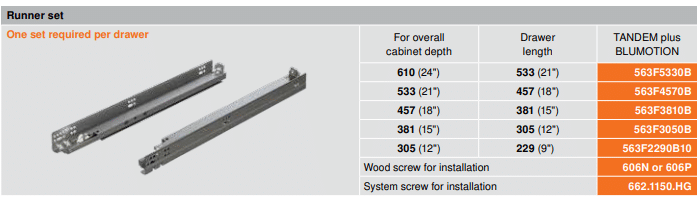

BLUM Tandem Drawer Slides with Left and Right clips
- Complete Runner System
- Full-extension concealed runners with BLUMOTION soft close
- Zinc-coated steel
- Concealed roller carriage with permanently lubricated synthetic rollers
- Available in standard duty
- H series for drawers up to 5/8″ side material thickness
- F series for drawers up to 3/4″ side material thickness
- Elongated holes for depth adjustment
- Bottom mount holes on 15″, 18″ and 21″
- Tool-free tilt adjustment
- Tool-free rear side-to-side adjustment locking devices
- Stamped steel or zinc die-cast base with synthetic, spring-loaded release levers
- Captive right device, self-aligning left device
- Self-adjusting drawer length tolerance
- Tool-free height adjustment
- Tool-free front side-to-side adjustment
- Available with depth adjustment
- Available for narrow drawers
- Rear Mounting Options
- Zinc-coated steel brackets or nylon sockets
- Depth and lateral self-alignment
- One Runner for All Applications
TANDEM runners are designed for the
American 3″ increment cabinet depth
system. This feature permits overlay or inset
applications to use the same runner. Full
length runners make installation in frameless
or face frame cabinets possible. - Load Capacities
- 100 lb static, 90 lb dynamic for TANDEM plus BLUMOTION 563 series
